Your coding agent's work, drawn as a map.

Drawa is a canvas workspace for coding agents, Claude Code, OpenCode, Codex and Antigravity. Run several sessions side by side, watch every file they read, edit and run appear wired to the session that touched it, and open any change in one click. It all runs on your machine.

$ curl -fsSL https://raw.githubusercontent.com/HimalayanNomads/drawa/main/install.sh | sh

View the source

Open source, AGPL-3.0 macOS and Linux Claude Code, OpenCode, Codex or Antigravity

Fix reconnectopus · auto

Why does a reload drop the stream?

A reload re-attaches from its last line, but events.go skips cards that aren't live yet.

Readinternal/live/live.go
Editinternal/server/events.go+2 −1
Writeinternal/live/live_test.go
Rungo test ./...

Fixed. A reload mid-stream now starts the card's process and picks up where it left off.

Message Claude…

live.gointernal/live

func (l *Live) Snapshot(from int) []Line {
  l.mu.Lock()

events.gointernal/server

- lv, ok := live.Get(c.ID); if !ok { continue }+ lv, ok := live.Get(c.ID)+ if !ok { lv = live.Start(c.ID) }

live_test.gonew file

func TestReattach(t *testing.T) {
  // reload mid-stream

Run1 command

$ go test ./...
ok  drawa/internal/live  0.41s

Drag a tab to move a window

Four colors, and each one means something.

Everything else on the canvas stays neutral, so what the agent did is readable from across the room.

ReadFiles the agent opened to understand the problem. Dotted, because nothing changed.
EditFiles it changed. Click one for the diff, from every session that touched it.
WriteFiles it created from nothing, like the test that proves the fix.
RunCommands it ran, collected beside the card with their output.

A whole workspace around the agent.

Sessions, files, diffs, notes and Git share one canvas. Pan, zoom, and put things where they make sense to you.

Parallel sessions

Each card is its own live agent process. Type any time: messages queue while the agent or its sub-agents work.

Fix reconnectworking
Migrate settingsneeds approval
Write release notesdone

Diffs everywhere

Click a file for its changes from every session, plus the file itself with Markdown and Mermaid preview.

@@ config.ts- const port = 8765+ const port = Number(env.DRAWA_PORT ?? 8765)

Sub-agents in the open

Every sub-agent gets a window of its own that fills in as it works, and you can message it directly.

Claude uses the canvas too

Built-in tools let Claude read, create, edit and link canvas items: a diagram of the flow it traced, a note on what's left. Changes go through the usual approval.

A whiteboard around your code

Sticky notes, a Markdown scratchpad, Mermaid diagrams, pictures, pinned snippets and freehand ink. @-mention any of them in a message, or drop one on a card.

Git and GitHub built in

Browse status and history, commit and push. Open pull requests and issues through gh, and send a PR, its failing checks or its reviews straight to a session.

Picks up where you left off

Resume past sessions from history. The layout survives a reload, and a reload re-attaches to sessions that are still running.

Your colors

Light and dark, with Rosé Pine, Catppuccin, Tokyo Night, Gruvbox, Nord, Kanagawa, Everforest, Solarized and GitHub schemes. Try one on this page:

Edit files in place

The pencil on a file window, or a double-click on its text, turns it into an editor. CtrlS saves, and only while the file on disk still matches what you opened. Turn on Vim motions in Settings for :w, gd and yanks that reach your clipboard.

41 func (s *Server) events(w http.ResponseWriter) {
42   lv, ok := live.Get(c.ID)
NORMALevents.go:w

Limits at a glance

Under each card's message box: tools loaded, context used, and rings for the 5-hour and weekly usage windows on Claude and ChatGPT plans. When a turn ends or an agent waits on you while you're in another tab, the tab title counts it and, if you allow them, a notification says so.

5h 49% week 12% 38% context

Every repo, every worktree

A folder of cloned repos? The Git window finds each one, up to four folders deep, with its own commit box and pull request. Each repo's header lists its worktrees: pick one to switch to it, or remove one you're done with.

See all features Review, groups, editing, Git and more, with what each agent supports.

Review it like a pull request, before it is one.

An agent's edit isn't a line in a transcript. Each one is numbered inside its file, with line numbers and real context, next to the edits every other session made to it.

events.go2 edits · 2 sessions

Fix reconnect +2 −1 Retry backoff +1 −0 Show in file

for _, c := range cards {

if c.Closed { continue }

// re-attach from its last line

@@ −41,3 +41,4 @@ #1 Fix reconnect

lv, ok := live.(c.ID); if !ok { continue }

lv, ok := live.(c.ID)

if !ok { lv = live.Start(c.ID) }

lv.Replay(w, c.From)

@@ −52,2 +53,3 @@ #2 Retry backoff

for try := 0; try < 5; try++ {

time.Sleep(backoff(try))

}

Get · 4 references

internal/live/registry.go22
internal/server/events.go41
internal/server/cardops.go87
internal/live/live_test.go130

Every session, one file. Click a file for each change made to it, numbered and labeled with the session that made it. Line numbers open the file at that line.
More context on demand. Long unchanged stretches fold into a row you click. In Git and GitHub diffs, a hunk's header shows ten more lines at a time, as a pull request review does.
Jump from a name. Click a name in an agent's edit for its definition. In a Git or GitHub diff, get every place it's used, each opening at its line in a small peek window.
Pin a hunk. Select part of a diff and pin it to the canvas. It stays a diff, with its + and −, ready to @-mention in a message.
Approve from the card. An edit waiting on you shows its diff inside the card: deny, allow once, or always.
Discard a file. Modified and deleted files in the Git window get a discard button: a change goes back to what's staged, a staged one to the last commit.

Plans you can mark up.

In plan mode, Claude's plan opens as a document on the canvas. Comment on any block, or draw on it, then approve it or send your notes back. The revision lands in the same window, with what changed marked word by word.

Planv2 · 1 added · 1 edited

Keep the stream across reloads

Store each card's last event id.
On reload, ~~poll every card~~ re-attach from that id.You What about cards that never went live?
Start cards that aren't live yet, then replay.
Add a test that reloads mid-stream.

Notes for Claude… Send notes Approve

Group the canvas by what you're working on.

A group is a named frame around windows: a session, the files it touched, a note, a diagram. Drag the frame's tab and everything inside comes along. Fold it away when you're done.

Reconnect fix3 windows

Fix reconnectopus

Readlive.go
Editevents.go+2 −1
Rungo test ./...

events.go+2 −1

- if !ok { continue }+ lv = live.Start(c.ID)

Note

Check the phone layout once this lands.

Release 0.92 windows

Release notescodex

WriteCHANGELOG.md
Rungit tag v0.9.0

GitHub#153

Checks passed, ready to merge

CtrlG
Group the selection. Groups inside it merge into one. With nothing selected, you get an empty frame to drop windows into.
Drop in to join, drag out to leave. A window dropped into a frame keeps its spot and the frame grows to fit. Dragged out, it leaves at once, with a notice that puts it back.
Never on top of each other. Frames wrap their windows as they grow, and make room instead of overlapping another group.
Drawings and pictures belong too. Ink, arrows and pictures inside a frame move with it, and a session's files, commands and plan windows open inside the group its card is in.
][
Layers. Bring a window forward or send it back, past the next one it overlaps; with Shift, all the way. Inside a group, they reorder its windows.
CtrlZ
Nothing is lost. Deleting a group can be undone with its frame intact, and a frame stays when its last window leaves. CtrlShiftG ungroups.

See all features Every feature, by category, with what each agent supports.

See it in the app.

Real screenshots, in light or dark to match this page. Click one for full view, as you would a picture on the canvas.

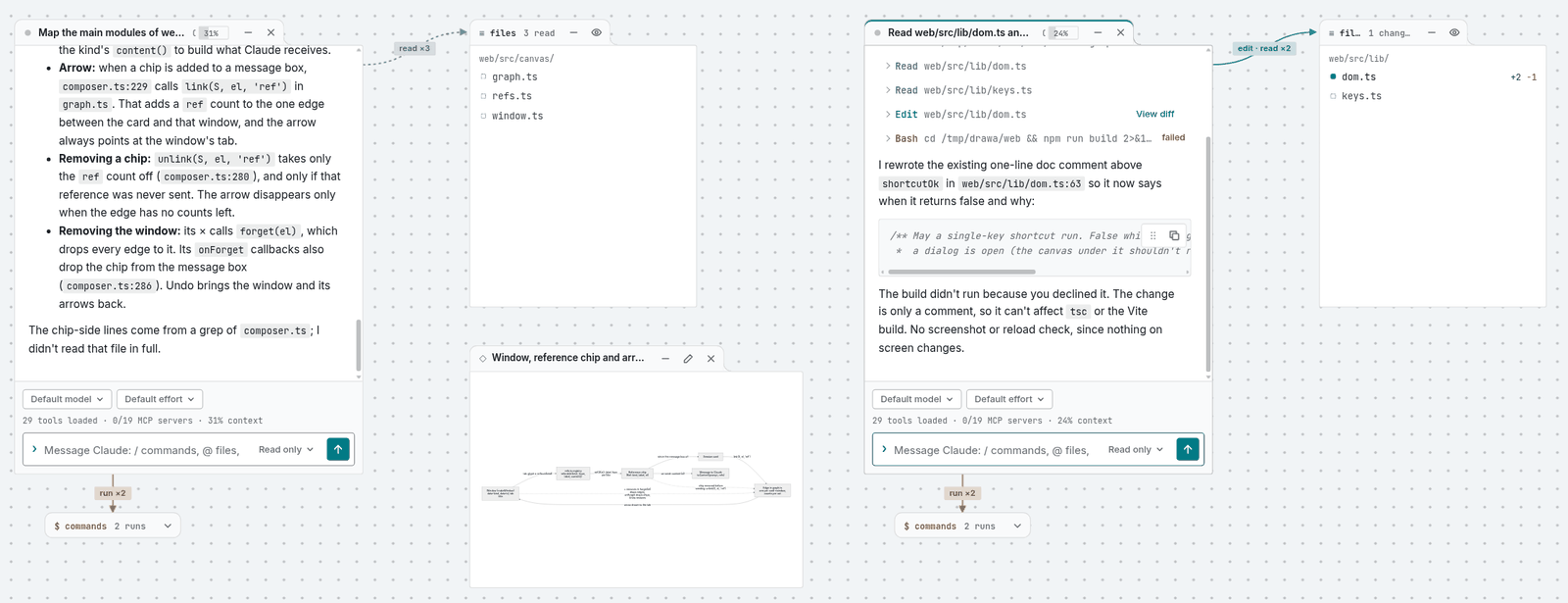

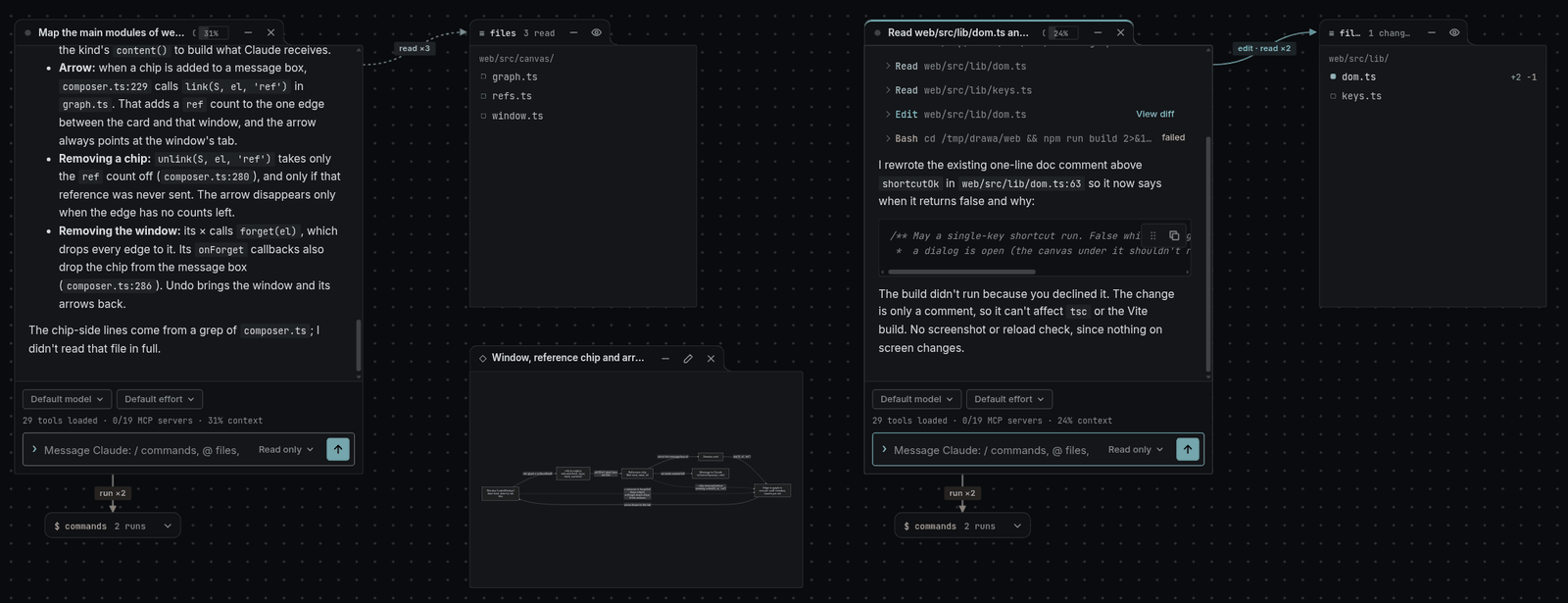

The Drawa canvas: session cards, each wired to a window of the files its agent read, edited and wrote, with a diagram beside them — **Several agents at once.** Each session is a card. The files its agent read, edited and wrote fill a window wired to it, with whatever else you put on the canvas beside them.

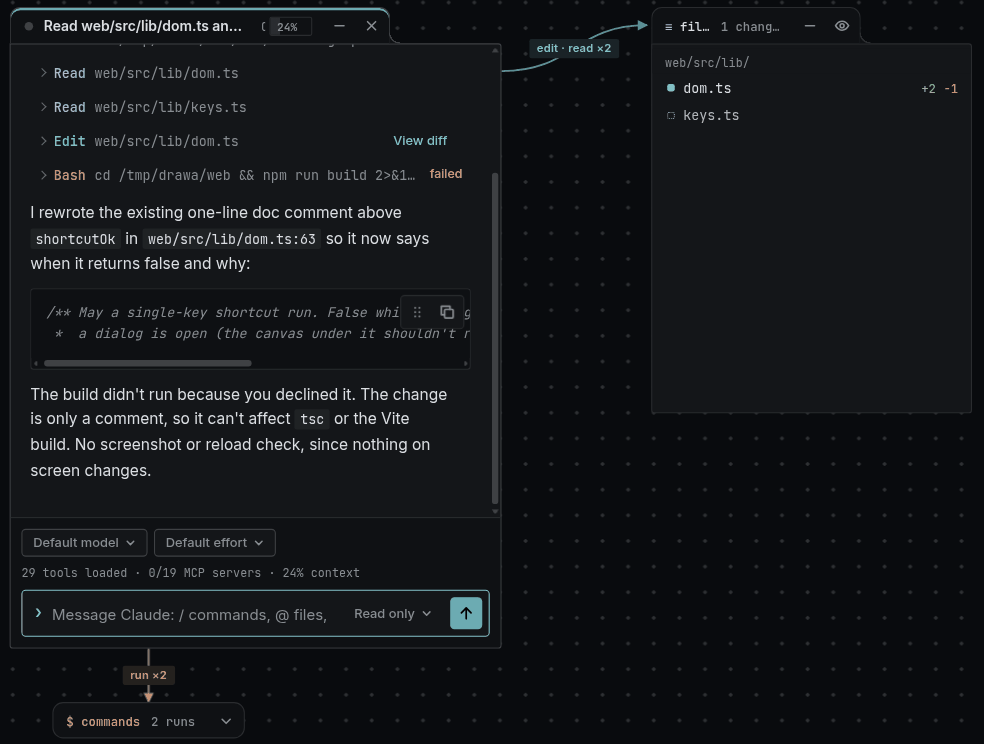

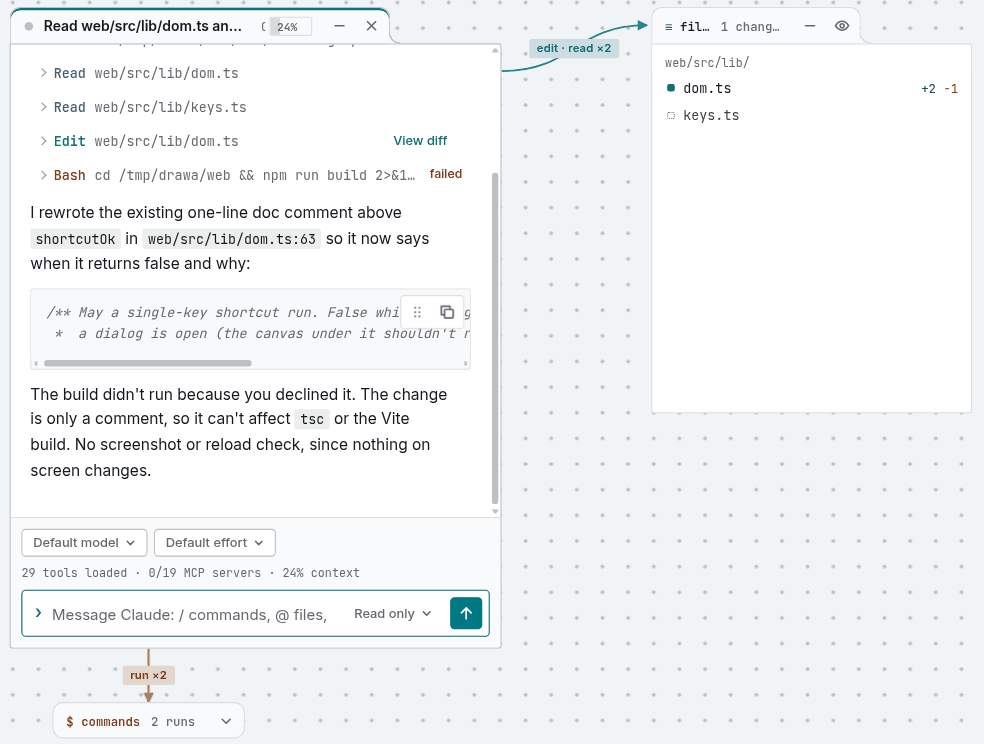

A session card wired to its files window: dom.ts edited (+2 −1), keys.ts read, and a commands window below — **Your work, drawn as a map.** Files are linked to the card that touched them and colored by what happened. Commands collect in their own window below.

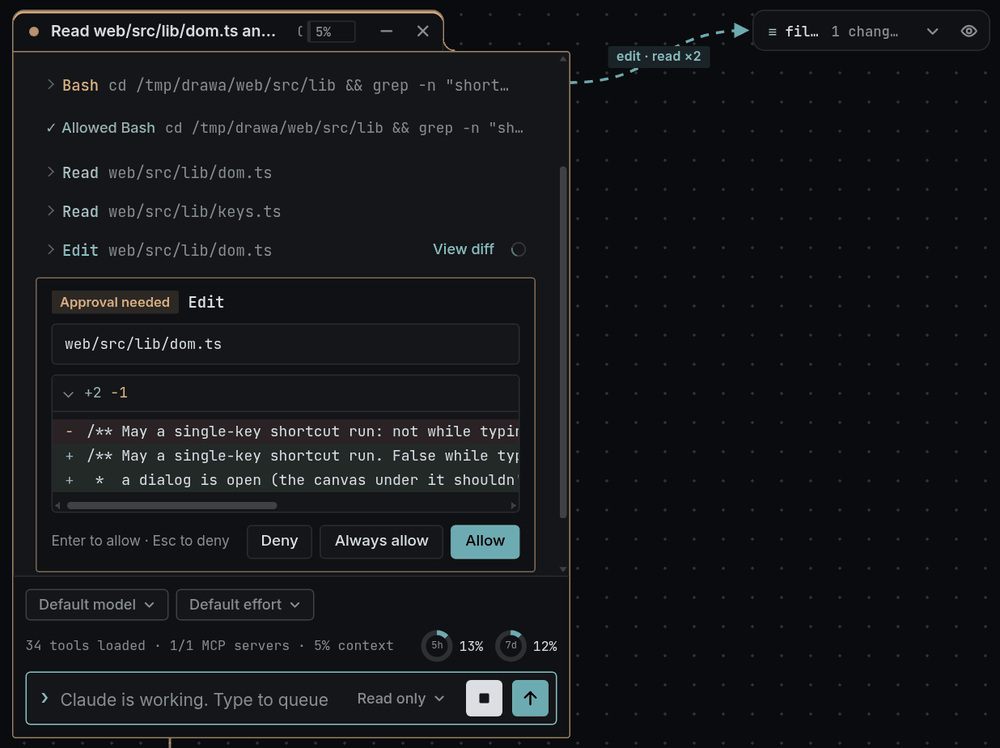

An edit to dom.ts waiting for approval, its diff shown inside the card above Deny, Always allow and Allow — **Review in place.** An edit waiting for approval shows its diff inside the card. Deny it, allow it once, or always.

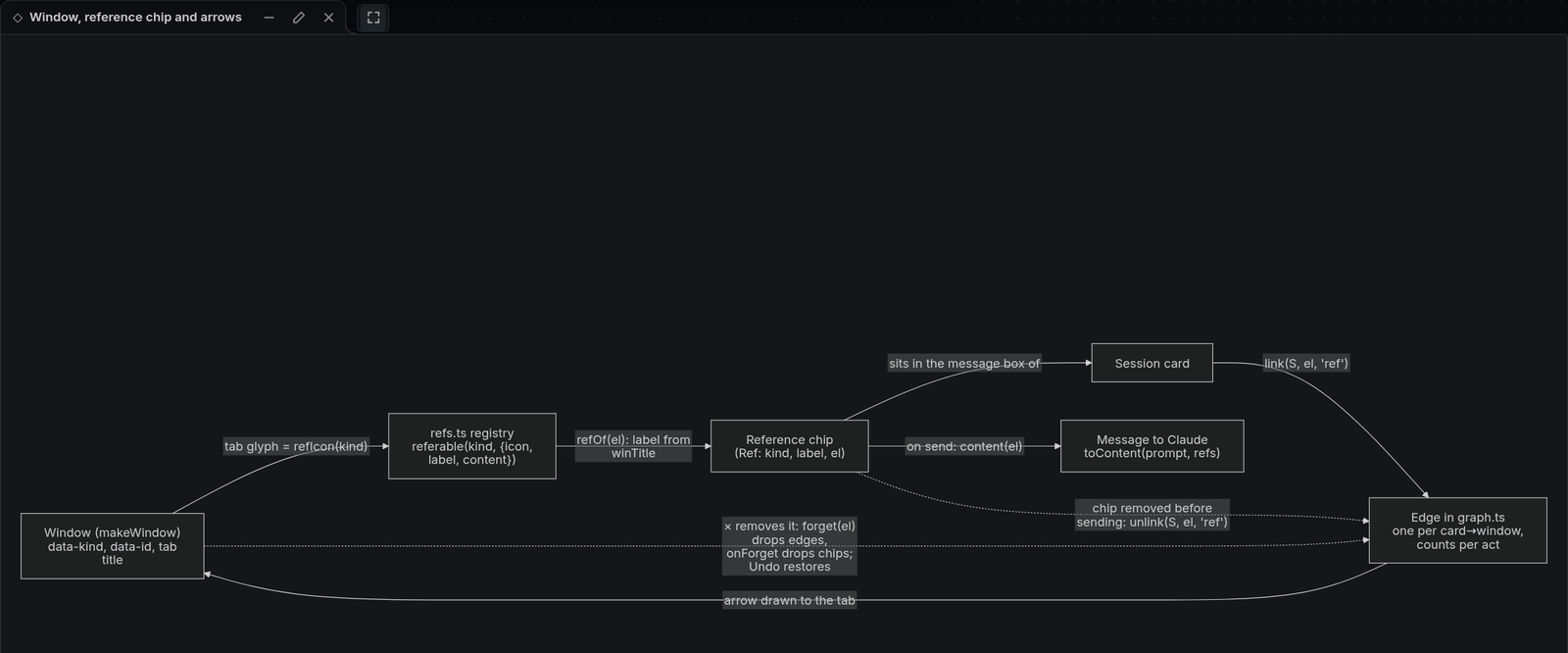

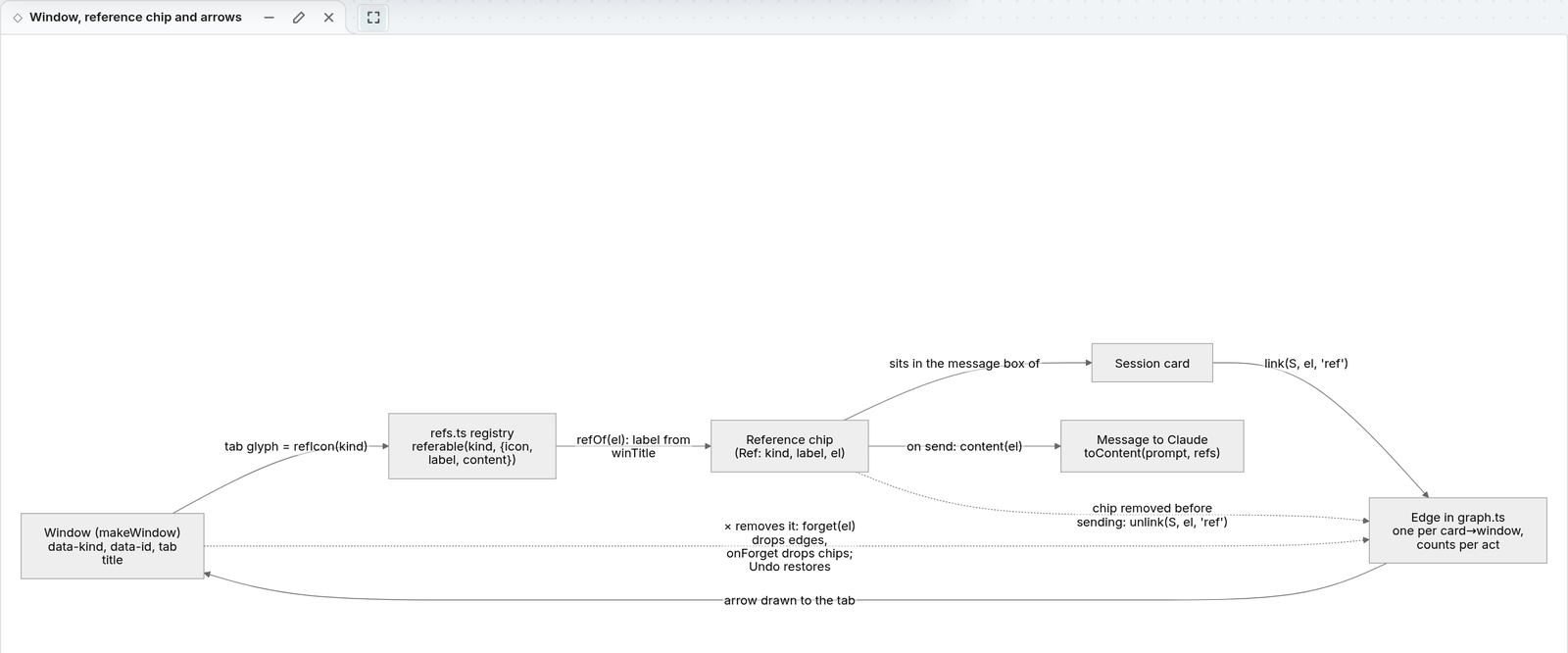

A Mermaid diagram Claude drew on the canvas, in full view: how a window, its reference chip and its arrows relate — **Agents use the canvas too.** They read, create, edit and link canvas items through built-in tools, like this Mermaid diagram of the code it traced.

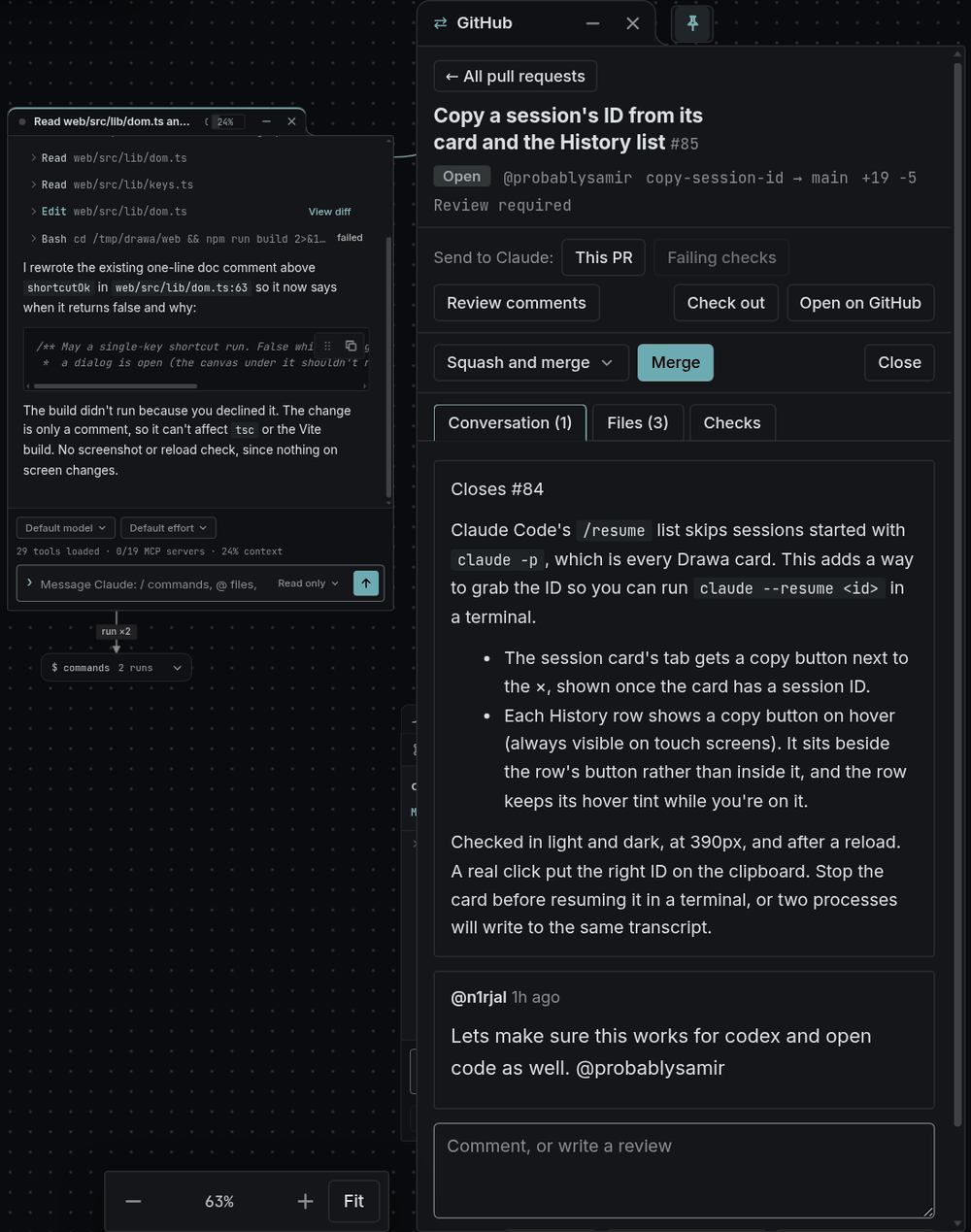

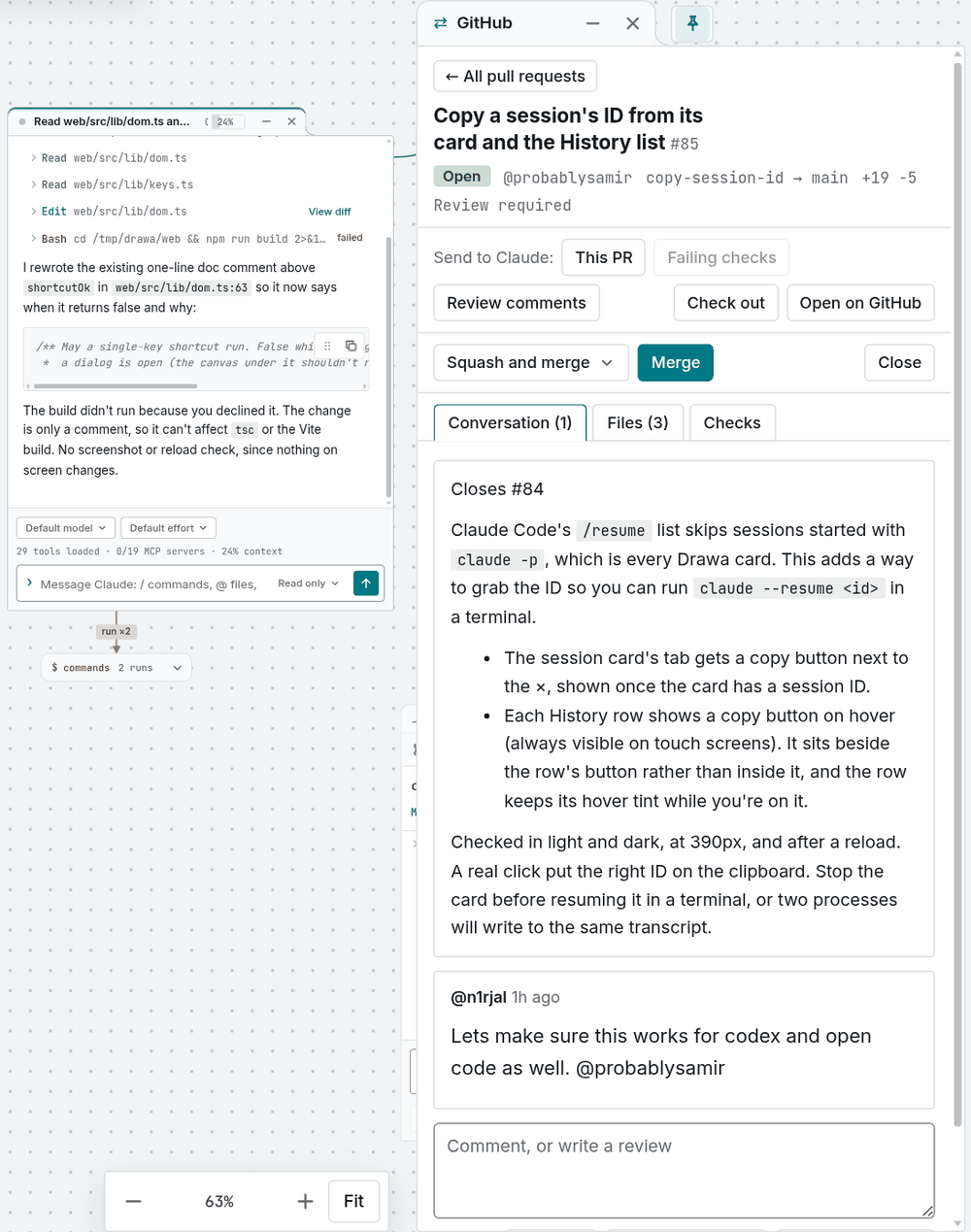

The GitHub window pinned to the sidebar beside a session card, showing a pull request with Send to Claude, Merge and its conversation — **Git and GitHub built in.** Pin the GitHub window beside a card. Send a pull request, its failing checks or its reviews straight to a session, or merge it.

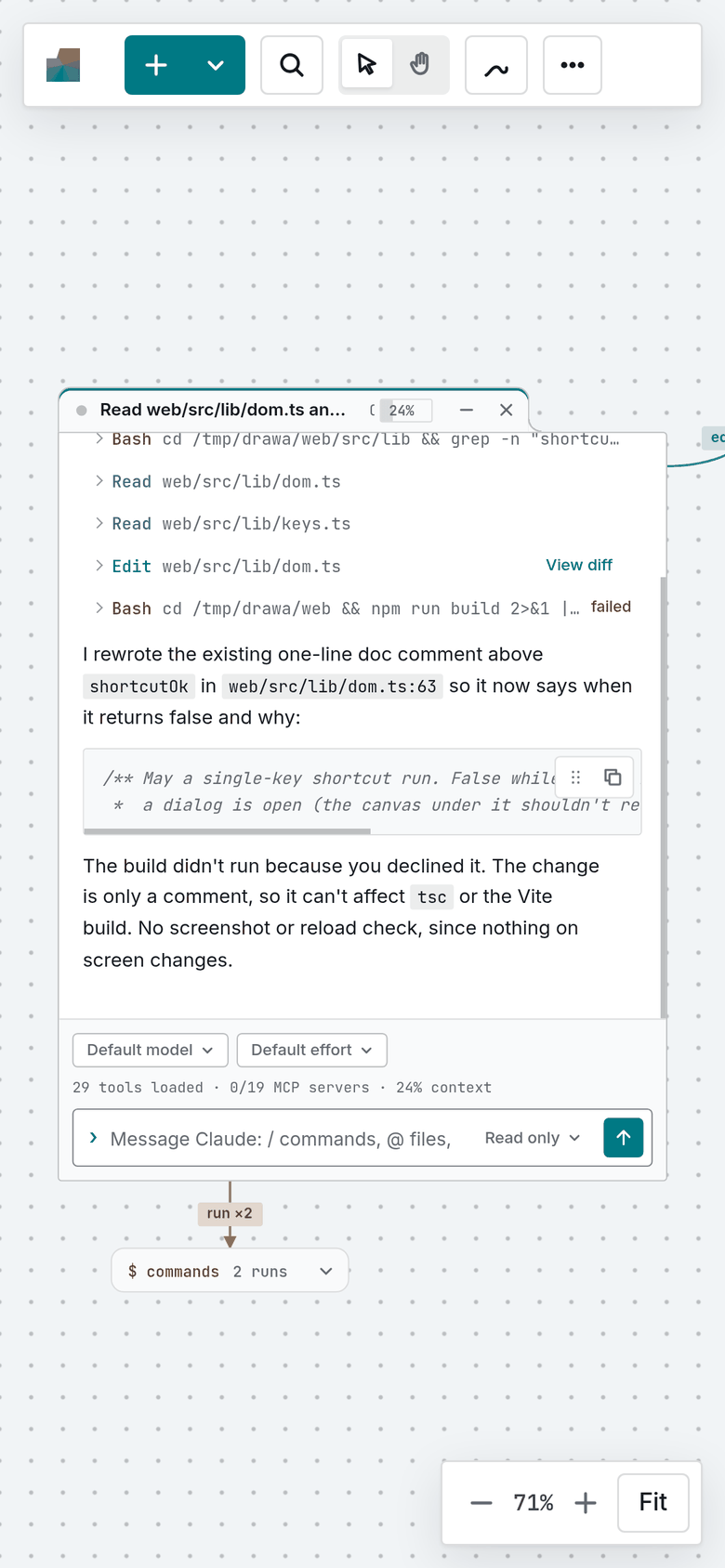

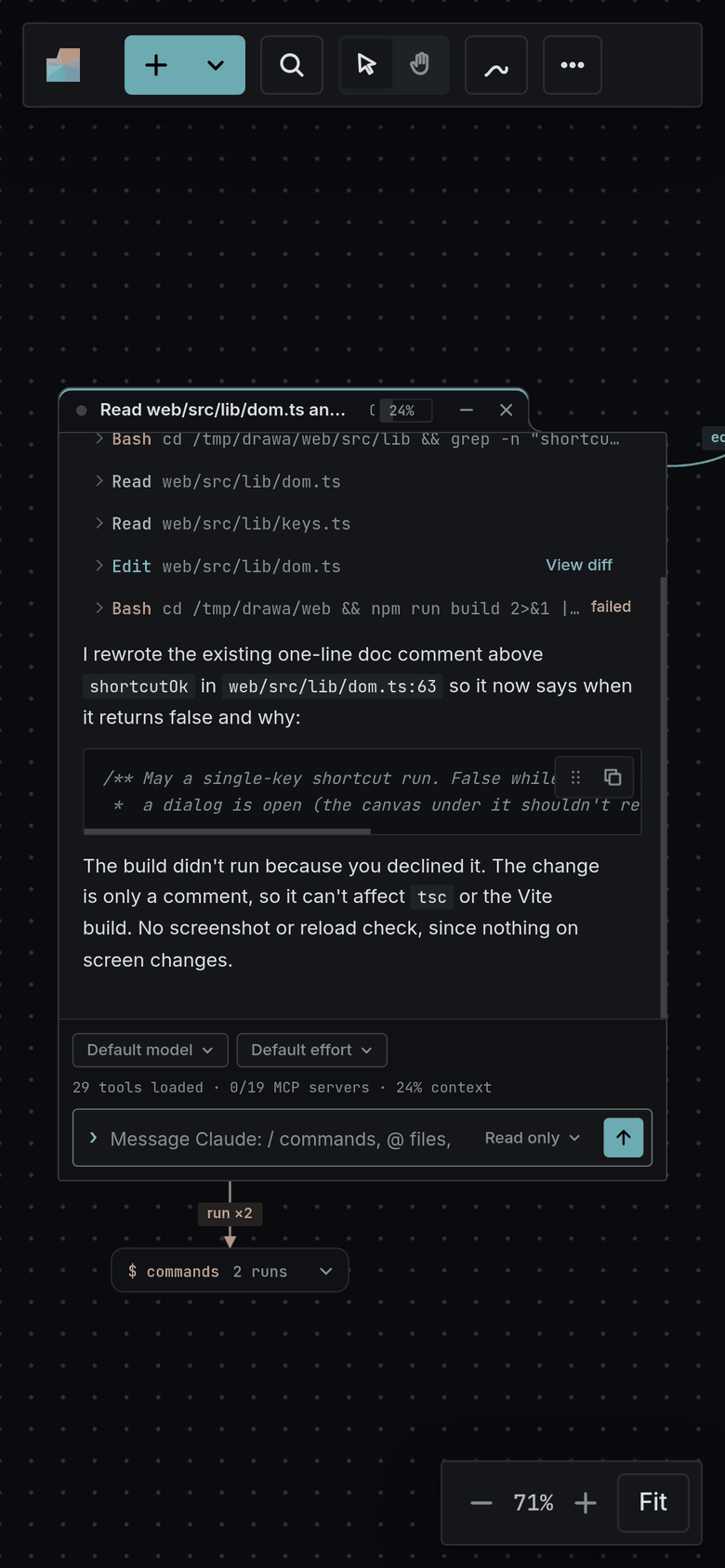

Drawa at phone width: a session card and its commands window — **Works on your phone.** Start with `--net` and open the printed link or QR code: the same canvas, starting in Hand mode so a drag pans.

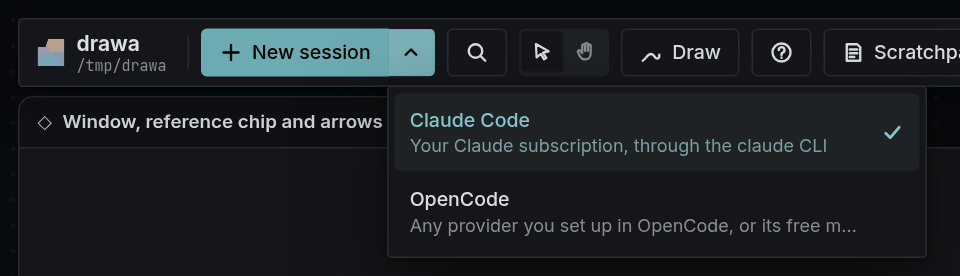

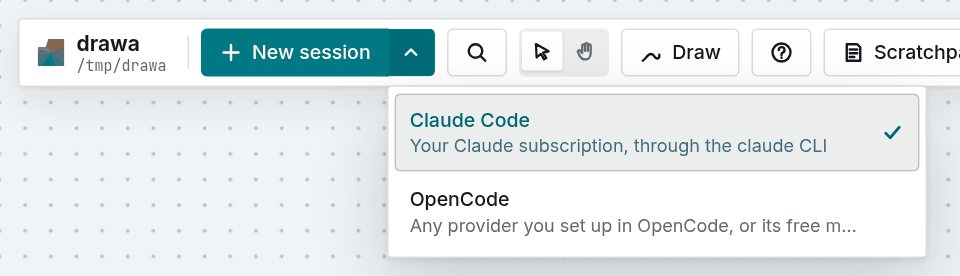

The New session menu listing the installed agents: Claude Code and OpenCode — **Pick an agent per session.** New session ▾ lists every agent Drawa finds on your PATH, so Claude Code, OpenCode, Codex and Antigravity can work side by side.

Bring the agent you already pay for.

Each card picks its agent and its model when you start it, from New session ▾. At launch Drawa lists the agents it finds, and warns if a version isn't the one it was tested with.

Compare agents

one is enough

What each agent supports in Drawa
	Claude CodeClaude Pro or Max	OpenCodeAny provider, or free models	CodexChatGPT plan or API key	AntigravityGoogle sign-in
Sign in with	Your Claude subscription	`opencode auth login`; its own free models need no key	`codex login`	Your Google sign-in, via `agy` in a terminal
Tested with	Not pinned	`1.18.32`	`0.158.0`	`1.2.16`
Approvals, file and command windows, canvas tools, history	Yes	Yes	Yes looking at the canvas never asks	Files, commands and history no approvals: edits are turned down unless in Allow everything; no canvas tools
Pasted images	Yes	Yes	Yes	No
Sub-agents	Own window	Own window	One row, not their own window	No
Auto mode	Yes	No	No	No
Effort setting	Yes	No	No uses its default	No models name their own level
Usage windows in the status line	Yes	No	No	No
Take back a queued message	Yes	No	No	No
Memory per session	Its own `claude` process	About 300 MB its own `opencode` server	About 250 MB its own `codex app-server`	Its own `agy` process

OpenCode privacy

A session's prompts, and the files it reads, go to the provider you pick. OpenCode's free models are run by third parties that may use what you send to improve their models (see OpenCode Zen's terms), so don't use them on code you can't share.
Codex trust

A local folder is marked trusted for Codex, so its .codex/ settings and AGENTS.md load, as with Claude Code. A cloned GitHub repo you didn't trust is marked untrusted, so they don't. Nothing is written to ~/.codex/config.toml.
Antigravity is limited

agy can't ask for approval when run headless, so edits and most commands are turned down and listed under the reply, unless you start the session in Allow everything. No Stop, no mode or model switch mid-session, no pasted images, no slash commands and no canvas tools. See #34.
Limits and commits

No agent has its own process limit: set DRAWA_MAX_LIVE if your machine needs one. In the Git window, Write with ▾ picks which agent writes commit messages and pull request descriptions.

How the permission modes map onto Codex

Ask first: Asks before edits, and before any command Codex doesn't consider safe.
Plan only: Never asks, and nothing it runs can write. It doesn't hand you a plan to approve: it answers in the chat.
Allow edits: Approves file changes inside the project only: not in .git, .codex, .agents or .claude, and not renames out of it.
Always allow: Covers a command or edit until the card's Codex process closes (after 30 idle minutes, or to stay under DRAWA_MAX_LIVE; it asks again after resuming). Drawa doesn't save Codex's permanent command rules, and canvas changes ask each time.
Changing modes: Applies from the next turn (a message sent mid-turn joins the running one), except that leaving Allow everything stops a running turn, since it can't lose full access mid-turn.

Runs on your machine, with the agent you already set up.

Drawa is one binary. It drives the claude, opencode, codex or agy CLI on your PATH with your login, settings, skills and MCP servers, and serves the page on 127.0.0.1.

Stays local. The server checks Host and Origin on every request, and file access stays inside the folder you opened.
Reach it from your phone. drawa --net prints a network link with a one-time token and a QR code.
No Claude subscription? Start OpenCode sessions with any provider it supports or its free models, Codex with your ChatGPT plan, or Antigravity with your Google sign-in.

Terminal~/code/api

$ drawa --net .
  - Local:   http://127.0.0.1:8765
  - Network: http://192.168.1.23:8765/?token=fpKZrzCN

$ drawa https://github.com/owner/repo
  cloned into the cache, opened in your browser

Keep your hands on the keyboard.

Single keys for the common moves, following Excalidraw's where the tool exists. They never fire while you're typing. In the app, ? lists them all and CtrlK runs any action by name.

N: New session
C: Next session
CtrlK: Find a window, file, symbol or command
D: Draw on the canvas
S: Scratchpad
G: Git
Shift1: Fit everything
Space+ drag: Pan

Vor1: Select
H: Hand (pan with a drag)
Spacehold: Pan for a moment
Shift1: Fit all
Shift2: Zoom to selection
Shift0: Zoom to 100%
F: Fit
+or-: Zoom in / out
←→↑↓: Pan (Shift: bigger steps)

N: New session
CorShiftC: Next / previous session (Enter to type)
T: Sticky note
S: Scratchpad
9: Insert a picture
G: Git
ShiftG: GitHub
ShiftH: History & files
CtrlK: Find a window, file, code symbol or command
?: All shortcuts

Enter after C puts you in that session's message box.

WorShiftW: Next / previous window
M: Collapse or expand
ShiftF: Full view
F2: Rename
ShiftP: Pin to the sidebar
ShiftS: Stick to the screen
]or[: Bring forward / send backward
Shift]orShift[: Bring to front / send to back

They act on the selected window, else the one in front. W selects, so Delete, the arrows and CtrlG act on it.

Ctrl/⌘S: Save
:w: Save (Vim)
:q: Stop editing (Vim)
:q!: Drop unsaved changes (Vim)
:wqor:x: Save and stop (Vim)
gdorgD: Where a name is declared, in the function / file (Vim)
CtrlO: Jump back (Vim)
EscthenTab: Leave the editor

Start editing with the pencil on a file window, a double-click on its text, or Edit in the file inspector. The pencil again stops, and asks first if there are unsaved changes. Vim motions are off until you turn them on in Settings.

D: Toggle Draw mode
Por7: Pen
Aor5: Arrow between items
Eor0: Eraser
Tor8: Text
Ror2: Rectangle
3: Diamond
Oor4: Ellipse
Lor6: Line
CtrlZ: Undo
Esc: Stop

Hold Shift for a square, a circle or a 45° line.

Ctrl/⌘A: Select all
←→↑↓: Nudge (Shift: 10px)
Delete: Remove
Esc: Clear
Ctrl/⌘G: Group the selected windows
Ctrl/⌘ShiftG: Ungroup the selected groups

Grouping windows that hold groups merges them. With nothing selected, CtrlG makes an empty group.

Enter: Send
ShiftEnter: New line
Esc: Leave the box
↑: Previous message, at the start
↓: Next message, at the end
/: Skills and slash commands
@: Reference a file or canvas item

The arrows walk through the messages and ! commands you sent in this session; past the newest is your draft. Prefer CtrlEnter to send? Pick it in Settings.

Drag the background to select in Select mode, or to pan in Hand mode. Phones start in Hand mode.
The middle button and the wheel always pan. Shift + scroll goes sideways.
Ctrl + scroll or a pinch zooms, and the zoom is saved with the canvas.
Jumping to a window with CtrlK, C or a notification keeps the zoom, unless the window would be under 50% or wouldn't fit: then it zooms to fit, at most 100%.
Click a picture or diagram for full view, and click again to zoom and pan it.

The details, when you need them.

The command line, what Drawa needs, and how to configure it. The full story is in the README and INSTALL.md.

drawa: Opens the current folder at http://127.0.0.1:8765 in your browser. Press N for a new session and start typing.
drawa ~/some/project: Any other folder.
drawa --net .: Also listens on your network address, like a Vite or Next.js dev server, and prints a link with a one-time ?token= plus a QR code for your phone. --net works in any position.
drawa https://github.com/owner/repo: Clones the repo into a cache folder and opens it; reruns reuse the clone. A folder link like /tree/main/docs opens the repo on its default branch.
drawa --clean: Removes cached clones, or pass one repo's URL. Keeps any clone with uncommitted, unpushed, stashed or ignored files. Don't run it while a Drawa is open on that clone.
drawa --update: Updates to the latest release.

Trusting a repo. Opening a GitHub URL, or a folder inside its clone, asks on each launch whether to trust it. Answer n (the default) and its .claude/ settings, hooks, .mcp.json, CLAUDE.md, OpenCode project config, and Codex's .codex/ and AGENTS.md are ignored, since they could run commands on your machine.

In the message box, / opens skills and slash commands and @ references files or canvas items. The toolbar picks the model and the permission mode.

Requirements
Claude Code	One agent required `claude` on `PATH` and logged in, for your Claude subscription.
OpenCode	Or, instead or as well: `opencode` on `PATH`, for any other provider or its free models. Tested with 1.18.32.
Codex	Or: `codex` on `PATH` and logged in, for your ChatGPT plan or an OpenAI API key. Tested with 0.158.0.
Antigravity	Or: `agy` on `PATH`, signed in once by running `agy` in a terminal. Limited: no approvals or canvas tools. Tested with 1.2.16.
`git`	Optional 2.36 or later. Powers the Git window, file history and find references.
`gh`	Optional Powers the GitHub window.
universal-ctags	Optional Code symbols: `CtrlK` finds functions, classes and the like by name, and clicking a name in a diff shows where it's defined. `brew install universal-ctags` on a Mac; turn it off in Settings.
OS	macOS or Linux. Windows isn't supported natively yet, but Drawa runs inside WSL2.
From source	Go 1.22+ and Node 20.19+ (or 22.12+). See Build from source.

Environment variables
Variable	Default	Purpose
`DRAWA_PORT`	`8765`	Port to serve on. Set it to run two projects at once.
`CLAUDE_CONFIG_DIR`	`~/.claude`	Claude Code's config directory, if you keep a separate login or set of skills for Drawa.
`DRAWA_NET_TOKEN`	fresh each run	The `--net` token. Drawa sets it itself so the token survives its self-restarts; set it only to pick your own.
`DRAWA_MAX_LIVE`	no cap	Most agent processes kept running at once (each takes a few hundred MB). Past it, the least recently used idle session closes; its next message resumes it. Idle sessions close after 30 minutes either way.
`DRAWA_DEV`	unset	`1` trusts the Vite dev server's origin (port 5173). `npm run dev` sets it; see CONTRIBUTING.md.

$ DRAWA_PORT=8766 CLAUDE_CONFIG_DIR=$HOME/.claude-work drawa ~/other/project

Settings that follow you to every project and browser live in ~/.drawa/config.json. Drawa writes the defaults the first time it starts, and the Settings panel (the gear) changes it. Hand edits apply on the next reload; a file that isn't valid JSON is left alone and the defaults apply until it's fixed.

// ~/.drawa/config.json
{
  "darkScheme": "claude-dark",
  "lightScheme": "claude-light",
  "symbols": "auto",
  "theme": "system",
  "ui": "full",
  "vim": "off"
}

uifull: full shows every window's title tab; minimal shows a tab only when you hover or focus its window. A card waiting for your approval keeps its tab either way.
themesystem: system follows your computer's light or dark mode; light or dark fixes it.
lightScheme, darkSchemeclaude-light, claude-dark: The color scheme for each mode, such as rose-pine-dawn, catppuccin-mocha or nord. Try them on this page.
symbolsauto: auto reads code symbols with universal-ctags when it's installed; off never runs it.
vimoff: on gives the file editor and scratchpads Vim motions. Yanks and deletes go to the system clipboard, and a yank flashes so you see what it took.
Per browser: Fonts, and which key sends a message.

Drawa is built to run locally, for one user.

Localhost only. The server listens on 127.0.0.1 unless you pass --net, and checks the Host header on every request either way.
A token for the network. With --net, the network address also needs its one-time ?token=, checked once, then kept in a cookie and dropped from the address. Five wrong guesses lock that address out for a few minutes. Treat the link like a password, and only use --net on a network you trust.
Same-origin changes. Any request that changes something must come from Drawa's own page, with a matching Origin.
Confined files. File access stays inside the project folder you opened.
Per-process tool tokens. Claude's canvas tools use a token per process, so only that session's own claude can call them.

Found a vulnerability? Please open a private security advisory rather than a public issue. See SECURITY.md.

Built in the open.

Everyone who has committed to Drawa, opened an issue or pull request, or joined the discussion, most active first. Add your face here.

drawamain

$ cat contributors.json
counting…

See contributors on GitHub

Install it in one line.

Downloads the release binary for your OS to ~/.local/bin/drawa. No Go or Node needed. Update later with drawa --update.
